What are the differences between precision crossed roller bearings and standard types?

Bearings are critical components in mechanical systems, ensuring smooth motion, accuracy, and load support. While standard bearings such as deep groove ball bearings or cylindrical roller bearings are widely used for general applications,precision crossed roller bearings are specifically engineered for high-accuracy motion systems where rigidity and positioning are essential. Crossed roller bearings feature cylindrical rollers arranged at right angles in a crisscross pattern, allowing them to support loads in multiple directions simultaneously-radial, axial, and moment loads-with exceptional stiffness.This makes them ideal for precision machinery like machine tools, medical equipment, and robotics. In contrast, standard bearing types are designed primarily for either radial or axial loads and are more commonly applied in general industrial machinery where ultra-precision is not required.

Differences Between Precision Crossed Roller Bearings and Standard Types

Precision crossed roller bearings differ significantly from standard types in their design, performance, and application. Here's a breakdown of the key differences:

Design and Construction

Roller Arrangement:

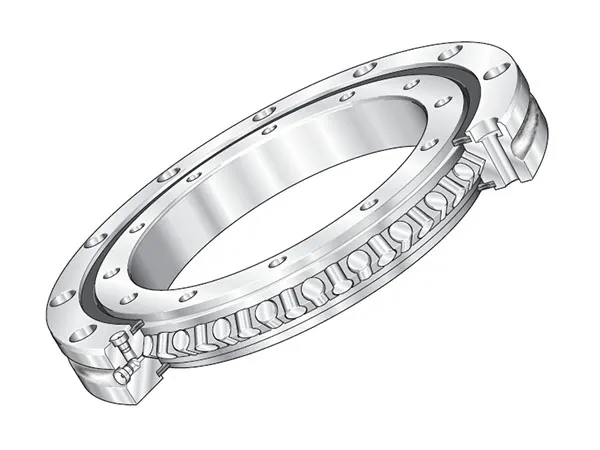

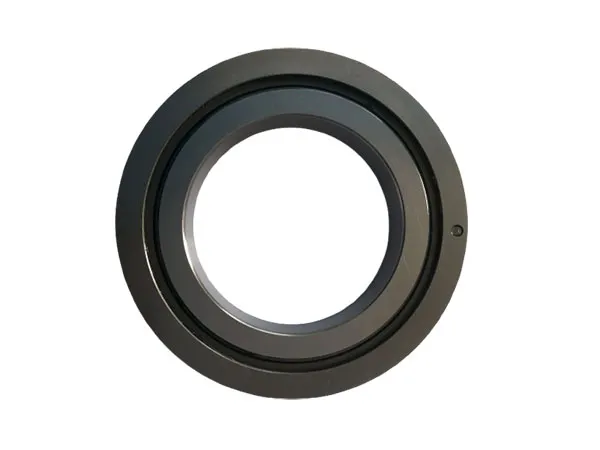

Precision Crossed Roller Bearings: These bearings feature rollers that are alternately arranged at right angles to each other, separated by spacers. This "crossed" arrangement allows a single bearing to handle radial, axial, and moment loads simultaneously with high rigidity.

Standard Bearings (e.g., Ball Bearings, Cylindrical Roller Bearings): Typically use rollers or balls arranged in a single row or multiple parallel rows. They are generally optimized for specific load types (e.g., radial for cylindrical roller bearings, combined radial and axial for deep groove ball bearings). To handle all three load types with high precision, multiple standard bearings would often be required in a complex arrangement.

Number of Races:

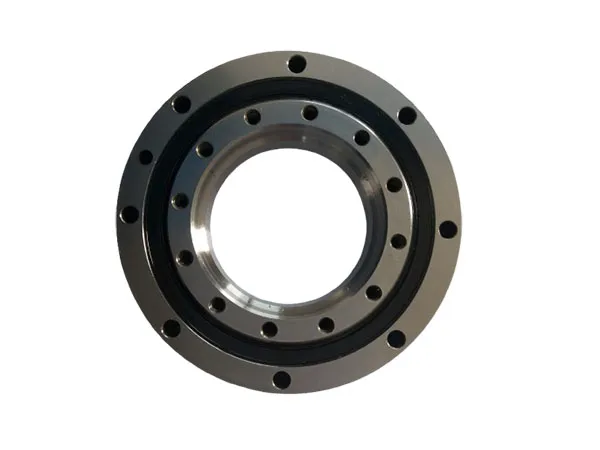

Precision Crossed Roller Bearings: Often have two split inner rings and/or an outer ring, or a single solid inner and outer ring with the rollers nested. The unique arrangement allows for a compact design.

Standard Bearings: Can have various race configurations, but generally, each bearing unit has its own dedicated inner and outer races.

Performance Characteristics

Load Capacity and Rigidity:

Precision Crossed Roller Bearings: Offer extremely high rigidity and precise rotational accuracy due to the line contact between the rollers and raceways and the wide effective span of the rollers. They can withstand heavy loads in all directions (radial, axial, and moment) with minimal elastic deformation.

Standard Bearings: While some standard bearings offer high load capacity, achieving the same level of multi-directional load handling and rigidity often requires a more complex assembly of multiple bearings, which can introduce compliance.

Accuracy and Runout:

Precision Crossed Roller Bearings: Designed for very high rotational accuracy, often featuring extremely low runout (deviation from perfect rotation). This is critical for applications requiring precise positioning.

Standard Bearings: While high-precision versions exist, their inherent design may not offer the same level of overall positional accuracy as crossed roller bearings, especially when handling complex load combinations.

Space Saving:

Precision Crossed Roller Bearings: Their compact design, allowing one bearing to do the job of multiple standard bearings, leads to significant space savings in machinery.

Standard Bearings:Achieving multi-directional load capacity often requires mounting two or more standard bearings in combination (e.g., two angular contact ball bearings), which takes up more axial or radial space.

Applications

Precision Crossed Roller Bearings:

Machine Tools: Rotary tables, indexing heads, grinding machines, machining centers, where high rigidity and accuracy are paramount.

Robotics: Joints of industrial robots, providing compact, high-stiffness support for articulated movements.

Medical Equipment: Imaging equipment (CT scanners, MRI machines), surgical robots, and other devices requiring precise motion.

Measurement and Inspection Equipment: Optical instruments, metrology equipment.

Semiconductor Manufacturing Equipment: Pick-and-place machines, wafer processing equipment.
Standard Bearings:

General Industrial Machinery: Motors, pumps, gearboxes, automotive components, conveyors, and countless other applications where cost-effectiveness, reliability, and specific load-handling capabilities are prioritized.

Household Appliances: Washing machines, vacuum cleaners.

Automotive: Wheel bearings, transmission components.

Cost

Precision Crossed Roller Bearings: Generally significantly more expensive due to their complex design, high manufacturing precision, and specialized materials.
Standard Bearings: Available in a wide range of prices, with many types being mass-produced and more cost-effective for general industrial use.

In summary, precision crossed roller bearings are specialized components designed for applications demanding extreme accuracy, high rigidity, and multi-directional load capacity in a compact form factor. Standard bearings, while versatile and widely used, often prioritize cost-effectiveness and specific load handling over the integrated precision offered by their crossed roller counterparts.
