Precision Crossed Roller Bearing Selection Guide

Selecting a precision crossed roller bearing requires careful consideration of several key factors to ensure optimal performance, longevity, and a perfect fit for your application. The unique design of these bearings—with rollers arranged orthogonally—allows a single bearing to handle complex loads, including radial, axial, and moment loads. This makes them ideal for applications requiring high rigidity and rotational accuracy.

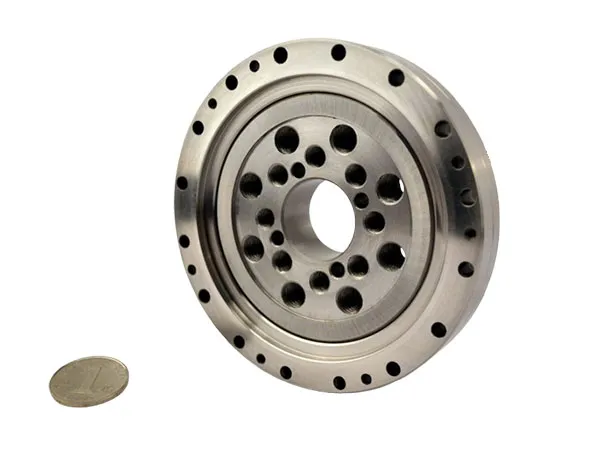

Precision Crossed Roller Bearing Selection Guide

1. Understanding Crossed Roller Bearings

At their core, crossed roller bearings feature cylindrical rollers arranged in a 'V' shape, alternating their direction of 90 degrees. This unique arrangement allows a single bearing to handle radial, axial, and moment loads simultaneously.

2. Key Selection Criteria

When selecting a precision crossed roller bearing, consider the following factors:

Load Capacity: Determine the maximum radial, axial, and moment loads your application will experience. Bearings are rated for both static and dynamic load capacities.

Rotational Accuracy: Precision applications demand bearings with very low runout. Consider the required rotational accuracy for your specific use case.

Rigidity: For applications requiring minimal deflection under load, such as robotic joints or machine tool spindles, high rigidity is crucial.

Rotational Speed: While crossed roller bearings are not typically used in very high-speed applications, ensure the chosen bearing can handle your operational RPMs.

Bearing Type:

Standard Type: Suitable for general precision applications.

High Rigidity Type: Designed for applications requiring maximum stiffness.

Integrated Type (with mounting holes): Simplifies installation and reduces machining time for the housing.

Lubrication: Proper lubrication is essential for bearing life and performance. Most crossed roller bearings are pre-lubricated, but consider re-lubrication intervals based on your operating conditions.

Operating Environment: Account for factors like temperature, humidity, and the presence of contaminants. Choose materials and seals that can withstand these conditions.

3. Calculating Bearing Life

Bearing life is primarily determined by fatigue caused by repeated stress cycles. The basic dynamic load rating (C) and the equivalent dynamic load (P) are used to calculate the nominal basic rating life (L10).

L10 = (C/P)^p x 10^6 revolutions

Where:

L10: Basic rating life (revolutions)

C: Basic dynamic load rating (N)

P: Equivalent dynamic load (N)

p: Exponent for life equation (3 for ball bearings, 10/3 for roller bearings)

For crossed roller bearings, p = 10/3.

4. Installation Considerations

Correct installation is critical for achieving the full performance of precision crossed roller bearings.

Cleanliness: Ensure all mounting surfaces and the bearing itself are scrupulously clean.

Mounting Surfaces: The housing and shaft mounting surfaces must be precise, flat, and perpendicular to the axis of rotation.

Press Fitting: Apply force only to the ring being press-fitted to avoid damaging the rolling elements.

Torque: Follow the manufacturer's recommended torque specifications for mounting bolts to ensure proper preload without overstressing the bearing.

Alignment: Misalignment can significantly reduce bearing life and performance. Use appropriate tools and techniques to ensure accurate alignment.

5. Common Applications

Precision crossed roller bearings are found in a wide range of demanding applications:

Robotics: Joints and rotational axes in industrial robots.

Machine Tools: Rotary tables, grinding machine spindles, and main shafts.

Measuring Instruments: High-precision rotary stages and sensors.

Medical Equipment: Imaging devices and surgical robots.

Semiconductor Manufacturing Equipment: Precision positioning stages.

By carefully considering these factors, you can select the optimal precision crossed roller bearing to ensure the longevity, accuracy, and performance of your application.
