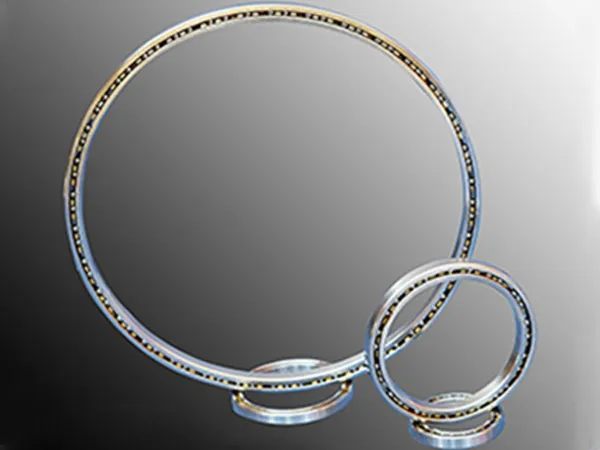

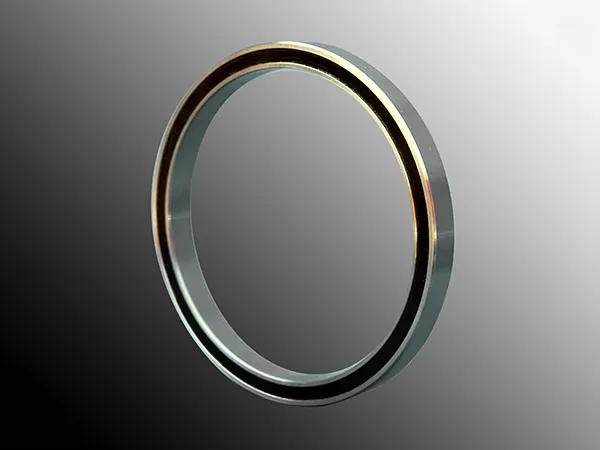

How to Choose the Right Thin Section Bearing for High-Speed Applications

In today’s industrial landscape, machinery is running faster, lighter, and with higher precision than ever before. High-speed applications—from robotics and aerospace systems to medical devices and automated production lines—place extreme demands on components. Thin section bearings, with their compact design and high load-carrying capacity relative to size, have emerged as a critical solution. However, selecting the right bearing is not just about picking a model off the shelf; it requires careful consideration of application needs, material properties, design, and supplier expertise.

How to Choose the Right Thin Section Bearing for High-Speed Applications

Here’s a comprehensive guide to help engineers, maintenance teams, and procurement specialists make informed choices that maximize performance and equipment longevity.

1. Define Your Application Requirements

Before choosing a bearing, it’s crucial to understand exactly what your machinery requires. High-speed operations impose unique stresses, and mismatched bearings can cause premature wear, vibration, or even catastrophic failure. Key factors to evaluate include:

Rotational Speed: Bearings must handle the maximum RPM with minimal friction. Excess friction generates heat, which can degrade lubrication and reduce bearing life.

Load Type and Magnitude: Determine whether your system applies radial, axial, or combined loads, and calculate the expected magnitude. Thin section bearings can handle high loads relative to size, but not all designs are equal.

Operating Environment: Temperature fluctuations, humidity, dust, chemical exposure, or cleanroom requirements affect material selection and lubrication strategies. Bearings exposed to corrosive chemicals or high temperatures need specialized coatings or materials.

By documenting these requirements upfront, you can narrow down options and avoid costly misapplications.

2. Understand Bearing Design and Dimensional Constraints

Thin section bearings come in several specialized designs, each suited for particular operational needs:

Crossed Roller Bearings: Excellent for high rigidity and precision under combined radial and axial loads. Ideal for robotic arms, turntables, and aerospace applications.

Angular Contact Bearings: Designed for high-speed rotation with moderate axial loads. Common in spindle assemblies and precision machinery.

Radial Ball Thin Section Bearings: Best for applications dominated by radial loads and moderate speeds, such as certain conveyor or indexing systems.

Additionally, consider physical dimensions carefully: the compact profile of thin section bearings is ideal for space-constrained designs, but the inner and outer diameters must integrate seamlessly into your assembly without interference. Misfit can lead to alignment issues or uneven load distribution.

3. Material Selection and Lubrication Are Critical

At high speeds, bearings face significant friction and heat. Choosing the right material and lubrication approach can dramatically extend service life:

Material Options:

Stainless Steel or High-Grade Chrome Steel: Provides durability, corrosion resistance, and consistent performance under moderate to high speeds.

Hybrid Ceramic Bearings: Offer lower density, reduced friction, and superior high-speed performance, especially for extreme RPM applications.

Lubrication Strategies:

Pre-Lubricated Bearings: Reduce maintenance but require verification of lubrication life under continuous high-speed operation.

Synthetic Oils and High-Performance Greases: Provide stable viscosity at elevated temperatures and maintain consistent film strength.

Proper material and lubrication choices reduce wear, minimize vibration, and prevent thermal damage, directly improving machine reliability.

4. Precision, Tolerances, and Performance Metrics

High-speed applications demand tight tolerances to ensure smooth rotation and minimize vibration:

Radial and Axial Runout: Lower runout translates to smoother motion and reduced noise.

Precision Grades: Bearings are rated by ISO or ABEC standards. High-grade bearings (e.g., ABEC 7–9 or ISO P4–P2) offer superior dimensional accuracy and performance.

Load Life Calculations: Check manufacturer data for dynamic and static load ratings to ensure the bearing can sustain continuous high-speed operation without premature fatigue.

Investing in precision bearings may increase upfront costs, but it pays off through longer equipment life and reduced downtime.

5. Evaluate Supplier Expertise and Customization

Not all suppliers offer the same level of support. Working with experienced bearing manufacturers or distributors provides several advantages:

Custom Sizes and Configurations: Some high-speed applications require non-standard bearing dimensions or designs.

Material and Lubrication Guidance: Expert advice can optimize performance for specific environmental or operational conditions.

Technical Support: Assistance with installation, alignment, and maintenance can prevent costly errors.

Choosing a supplier that understands your industry ensures that your bearing selection is both technically sound and cost-effective.

Conclusion

Selecting the right thin section bearing for high-speed machinery is a strategic decision, not just a purchase. By carefully evaluating operational requirements, bearing design, material, lubrication, precision, and supplier expertise, engineers can enhance performance, reduce maintenance, and extend equipment life.

High-speed machinery is only as reliable as its components. Investing time in the right bearing ensures your operations run smoothly, efficiently, and with minimal interruptions—keeping your production lines, robotics systems, or precision instruments operating at peak performance.
