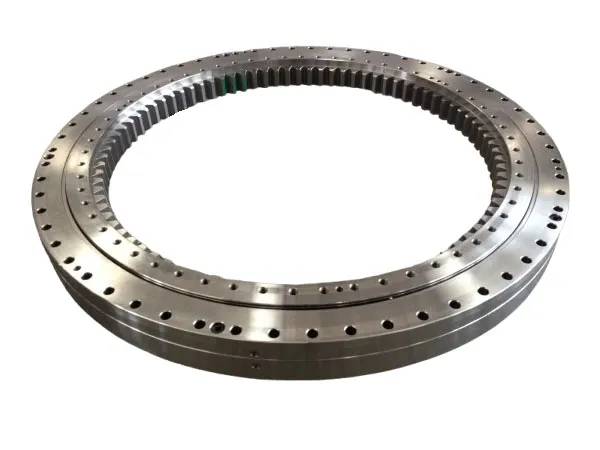

Advantages and Process of Customized Slewing Bearings

Customized slewing bearings are specifically designed and manufactured to meet the unique requirements of a particular application, rather than using a standard, off-the-shelf product. This approach is common in heavy machinery, renewable energy, medical equipment, and other specialized industries where standard bearings simply won't suffice.

Advantages of Customized Slewing Bearings

The decision to opt for a customized slewing bearing is driven by several significant advantages that standard bearings cannot offer:

Optimized Performance:

Precise Load Capacity: Engineered to handle exact axial, radial, and moment loads specific to the application, preventing under- or over-engineering.

Tailored Speed & Precision: Designed for the exact rotational speed and positioning accuracy required, crucial for robotics, telescopes, or high-precision machinery.

Enhanced Stiffness: Can be optimized for specific stiffness requirements to minimize deflection and improve the overall stability of the machine.

Perfect Fit & Integration:

Exact Dimensions: Manufactured to precise size, mounting hole patterns, and internal/external features to seamlessly integrate with the surrounding machine structure.

Reduced Complexity: Can incorporate features (e.g., integrated gearing, specific seals, sensor mounting points) that reduce the need for additional components, simplifying assembly and reducing part count.

Space & Weight Optimization: Allows for a compact design, saving valuable space and reducing overall machine weight, which is critical in mobile or aerospace applications.

Application-Specific Environmental Resistance:

Extreme Temperatures: Designed to operate reliably in very hot or very cold environments with appropriate material selection, lubrication, and sealing.

Corrosion Resistance: Use of specific materials (e.g., stainless steel, specialized coatings) for applications exposed to saltwater, chemicals, or other corrosive agents.

Contaminant Protection: Customized sealing solutions to protect against dust, dirt, water, and other abrasives, extending bearing life in harsh environments.

Cost Efficiency (Long-Term):

Extended Service Life: A perfectly matched bearing will experience less wear and tear, leading to a longer operational life and reduced downtime.

Reduced Maintenance: Optimized design can minimize the need for frequent lubrication or part replacement.

Avoidance of Over-Engineering: Prevents the unnecessary expense of using an oversized or over-specified standard bearing, leading to material and cost savings.

Improved System Efficiency: A precisely designed bearing can contribute to the overall energy efficiency and performance of the entire system.

Enhanced Reliability & Safety:

Critical Applications: Ensures maximum reliability in applications where failure is not an option (e.g., medical devices, defense systems, wind turbines).

Reduced Risk of Failure: By addressing specific stress points and operational conditions, the risk of premature failure is significantly reduced.

Problem Solving for Unique Challenges:

When standard components simply do not exist or cannot be adapted to meet a machine's unique requirements, customization provides the only viable solution.

Process of Customized Slewing Bearings

The process of developing a customized slewing bearing is a collaborative, multi-stage engineering endeavor that involves close communication between the customer and the bearing manufacturer.

Initial Consultation & Requirements Gathering:

Customer Input: The process begins with the customer providing detailed information about their application. This includes:

Machine type and function

Specific load conditions (axial, radial, moment loads, static, dynamic, shock)

Operating environment (temperature, humidity, contaminants, vibrations)

Desired rotational speed and accuracy

Mounting constraints and available space

Expected service life and maintenance intervals

Budget and timeline considerations

Feasibility Assessment: The bearing manufacturer's engineering team reviews the requirements to determine technical feasibility and identify potential challenges.

Feasibility Study & Conceptual Design:

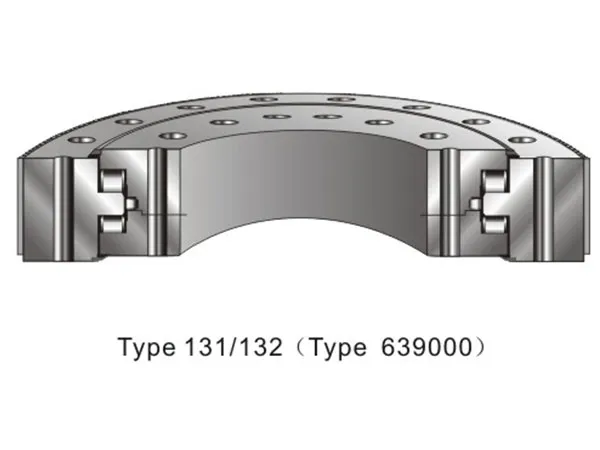

Based on the initial data, engineers develop preliminary concepts and evaluate different bearing types (e.g., single-row ball, double-row ball, cross-roller, three-row roller) and configurations that could meet the needs.

Rough calculations are made to estimate load capacities and dimensions.

Initial material and lubrication recommendations may be made.

Detailed Design & Engineering:

CAD Modeling: Using CAD software, detailed 3D models of the bearing are created, incorporating all dimensions, features (gear teeth, mounting holes, seal grooves), and interfaces.

FEA (Finite Element Analysis): Simulations are performed to analyze stress distribution, deformation, and fatigue under various load conditions, ensuring the design's structural integrity.

Material Selection: Precise selection of steel grade, heat treatment, and surface coatings based on load, wear, and environmental factors.

Lubrication & Sealing Design: Specification of appropriate grease or oil, and design of sealing systems to protect against contaminants and retain lubricant.

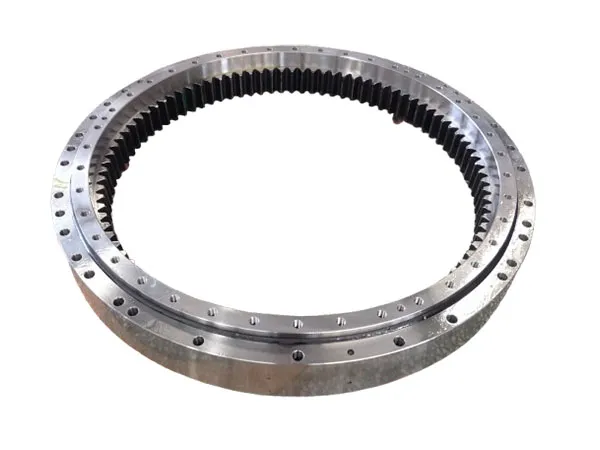

Gear Design (if applicable): Detailed design of internal or external gearing for drive mechanisms.

Design Review & Approval:

The manufacturer presents the detailed design, including drawings, specifications, and performance predictions, to the customer.

Both parties review the design for compliance with requirements, manufacturability, and cost-effectiveness.

Any necessary revisions are made, and the final design is approved by the customer, leading to a signed agreement.

Manufacturing Planning & Procurement:

Detailed manufacturing plans are created, outlining each step of the production process.

Raw materials (steel rings, balls/rollers, cages, seals) are procured.

Specialized tooling and jigs may be designed and fabricated.

Manufacturing & Assembly:

Machining: Precision machining of bearing rings (turning, milling, grinding) to achieve exact dimensions and surface finishes.

Heat Treatment: Critical processes like induction hardening or through hardening are applied to raceways and gear teeth to achieve desired hardness and wear resistance.

Gear Cutting: If integrated gearing is required, gears are precisely cut and finished.

Drilling & Tapping: Mounting holes are drilled and tapped according to specifications.

Assembly: Balls/rollers, spacers, and seals are carefully assembled into the bearing rings.

Quality Control & Testing:

Throughout the manufacturing process, rigorous quality checks are performed at each stage.

Dimensional Inspection: Verification of all critical dimensions using precision measuring equipment.

Hardness Testing: Confirmation of correct hardness of raceways and gear teeth.

Run-out & Torque Testing: Measurement of rotational accuracy (axial and radial run-out) and rotational torque to ensure smooth operation.

Non-Destructive Testing (NDT): May include magnetic particle inspection or ultrasonic testing for internal flaws.

Greasing & Sealing Integrity Checks: Final lubrication and seal inspection.

Packaging & Delivery:

The finished bearing is carefully cleaned, lubricated, and packaged to prevent damage and corrosion during transit.

Proper documentation (inspection reports, material certificates, installation instructions) is included.

Logistics are arranged for delivery to the customer.

Post-Sales Support & Installation Assistance:

Manufacturers often provide technical support for installation, commissioning, and ongoing maintenance.

Troubleshooting and spare parts availability ensure the long-term success of the customized solution.

By following this meticulous process, manufacturers can deliver a customized slewing bearing that precisely meets the application's demands, ensuring optimal performance, longevity, and reliability for the entire machinery.
